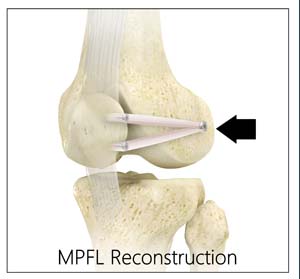

Medial Patellofemoral Ligament Reconstruction

Medial patellofemoral ligament reconstruction is a surgical procedure indicated in patients with more severe patellar instability. Medial patellofemoral ligament is a band of tissue that extends from the femoral medial epicondyle to the superior aspect of the patella. Medial patellofemoral ligament is the major ligament which stabilizes the patella and helps in preventing patellar subluxation (partial dislocation) or dislocation. This ligament can rupture or get damaged when there is patellar lateral dislocation. Dislocation can be caused by direct blow to the knee, twisting injury to the lower leg, strong muscle contraction, or because of a congenital abnormality such as shallow or malformed joint surfaces.

Dr. Garcia demonstrates his MPFL reconstruction technique to treat recurrent patella dislocations

Dr. Garcia’s pediatric technique for MPFL reconstruction to save the patient’s growth plates

Medial patellofemoral ligament reconstruction using autogenous tissue grafts is done by following the basic principles of ligament reconstruction such as:

Graft Selection: Strong and stiff graft should be selected
Location: The graft should be located isometrically
Correct tension: The tension set in the graft should be appropriate
Secure Fixation: Stable fixation of the graft should be achieved
Avoid condylar rubbing or impingement: The graft should not rub against condyle or cause impingement

Dr. Garcia demonstrates his new innovative technique for MPFL reconstruction

Surgical Technique

Check out Dr. Garcia’s new knotless MPFL Technique in 4K

The surgical procedure of medial patellofemoral ligament reconstruction involves the following steps:

Graft Selection and Harvest: Your surgeon will make a 4-6 cm skin incision over your knee, at the midpoint between the medial epicondyle and the medial aspect of the patella (knee cap). The underlying subcutaneous fat and fascia are cut apart to expose the adductor tendon. The tendon is then stripped using a tendon stripper and its free end is sutured. The diameter of the tendon graft is measured using a sizer.

Alternatively, a graft can be harvested from the quadriceps tendon.

Location of the femoral isometric point: The graft should be placed isometrically to prevent it from overstretching and causing failure during joint movements. A transverse hole measuring 2.5 mm is made through the patella. Then a small incision is made over the lateral side of the patella and a strand of Vicryl suture material is inserted through the hole. Over this strand, a 2.5 mm Kirschner wire (K-wire) is passed and then inserted into the bone besides the medial epicondyle.

An instrument called pneumatic isometer is inserted into the hole made in the patella and the Vicryl isometric measurement suture material is also passed along. The knee is taken through its full range of motion and any changes happening in the length between the medial epicondylar K-wire and the medial aspect of the patella is recorded on the isometer. The position of the K-wire will be adjusted until no deviations are read on the isometer during full range of motion. Once the isometric point is identified, a tunnel is drilled starting from the insertion of the adductor tendon till the isometric point is reached. The graft is pulled through this tunnel, then exits at the medial condyle and again passed through another tunnel that is made through the patella.

Correct tension: The tension is set in the graft with your knee flexed up to 90º and the tension should be appropriate enough to control lateral excursion.

Secure fixation: After bringing the tendon graft from the medial to the lateral side through the bone tunnel, it turned onto the front surface of the patella where it is sutured.

Avoid condylar rubbing and impingement: After graft fixation, the range of motion is checked to make sure there are no restrictions in patellar or knee movements. The graft should not impinge or rub against the medial femoral condyle. If it is detected, the graft is replaced into proper position.

Post-operative care

The first MPFL reconstruction with the new knotless knee fibertak in Washington State

A knee brace should be used during walking in the first 3-6 weeks after surgery. Avoid climbing stairs, squatting and stretching your leg until there is adequate healing of the tendon. Rehabilitation exercises, continuous passive motion and active exercises will be recommended.
